WJ-8922 briefcase surveillance receiver

Top view Front view Main Control WJ-8922 data sheet
HF Receiver RF Stages IF Stages

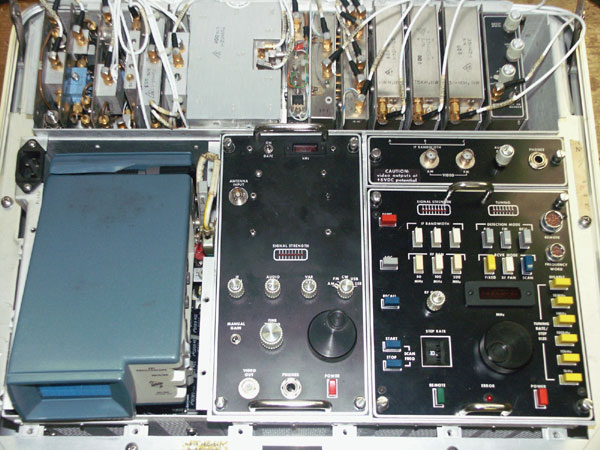

WJ-8922 TSCM briefcase surveillance receiver - top view

This is what you see when you open the briefcase. The main receiver is across the top. The main receiver controller is on the right. They communicate via serial control. The sub-carrier/HF receiver is in the middle. The blue box on the left is a Tektronix oscilloscope which is the the spectrum display unit.

Not much is known about this unit. WJ released a block diagram and some rudimentary user information on request but refused to release anything else at the direction of the original customer (who is unknown). It contains a digitally synthesized DC to 3 GHz receiver with bandwidths of 10, 75, & 300 kHz and 1 & 3 MHz. It also contains a separately controllable HF receiver (center black module) for demodulating subcarriers. The unit will demodulate AM, FM, CW, Pulse, USB & LSB. A miniature Tektronix oscilloscope provides spectrum displays. Also has scanning and computer remote control functions. A very unusual radio. Completely powered by 12 VDC.

A reader found a data sheet for a WJ-8922 built in a different manner. WJ often produced technical data sheets for prototypes or conjectural designs, some of which were completely redesigned before sale or, in some cases, were never sold.

back to top

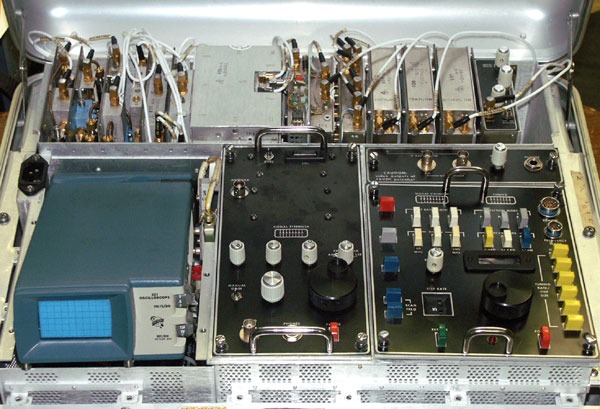

WJ-8922
front view



Set it on the desk in front of you as you start your mission and it looks like the photo above.



back to top

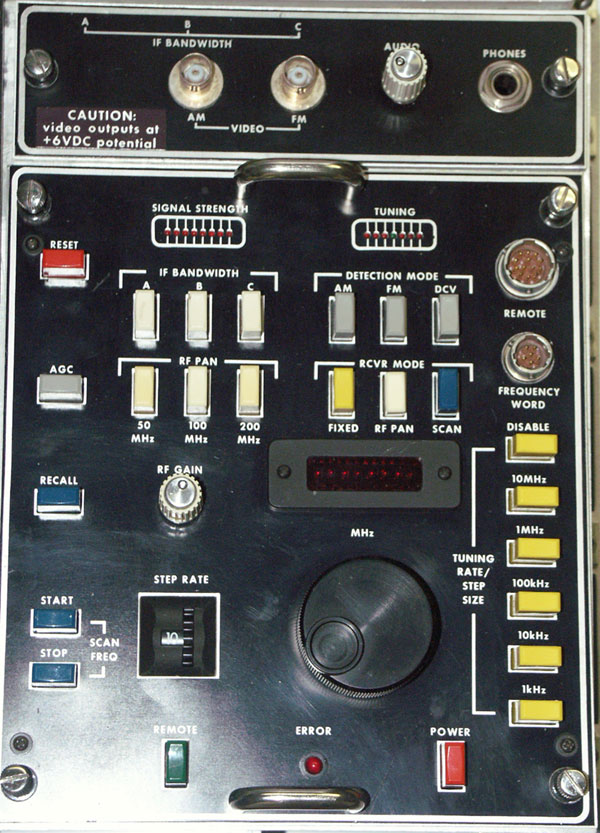

WJ-8922
receiver controller



This is the controller for the receiver. Notice the scanning functions and the wide RF pan ranges.





back to top

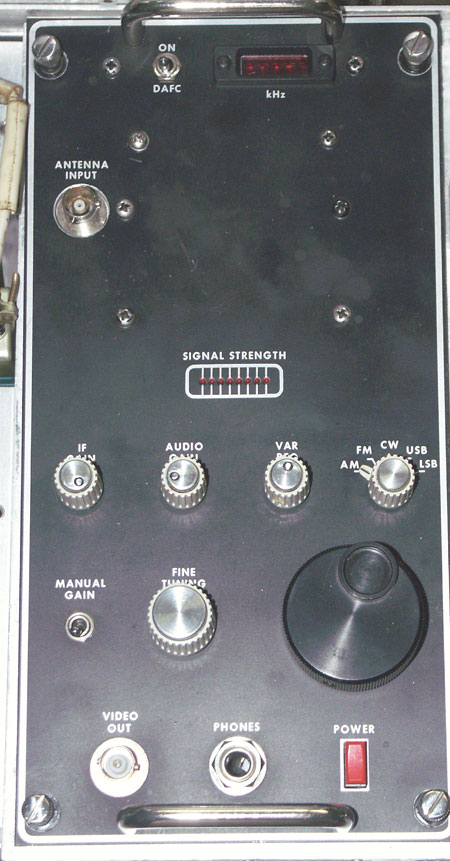

WJ-8922
secondary HF receiver or subcarrier demodulator



This HF receiver can be used for standalone or as a secondary demodulation unit to search for subcarriers.







back to top

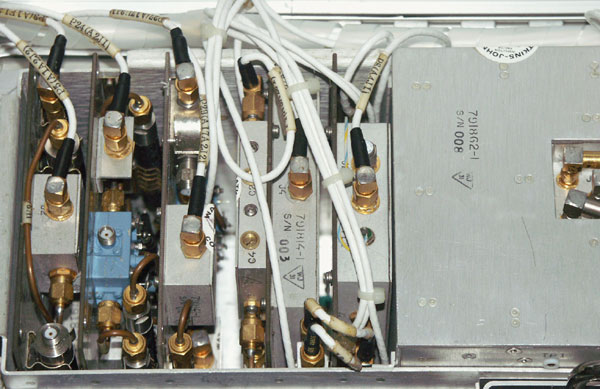

WJ-8922
RF, conversion and synthesizer stages

Modular design allows operational flexibility and easy field repairs



back to top

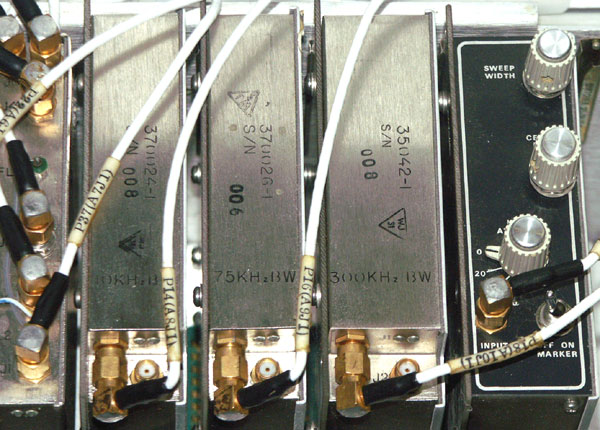

WJ-8922
IF stages and pan adapter



This is the IF stages and the spectrum display generator that feeds the Tektronix oscilloscope.
